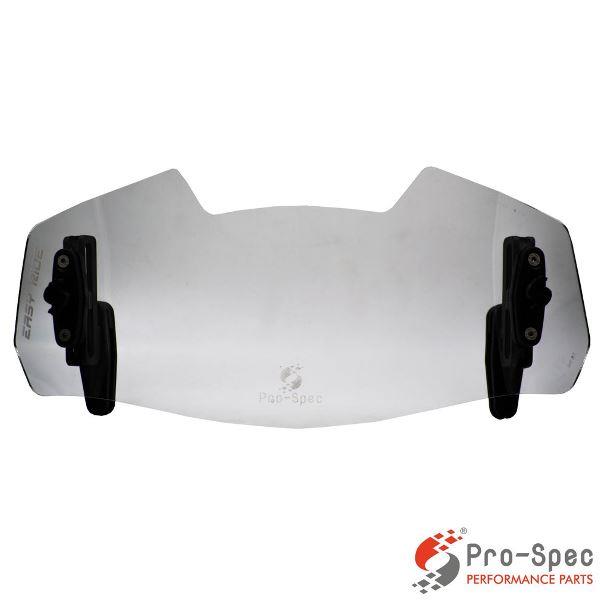

Pro-spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 1200 XCX- ER760

Pro-Spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 1200 XCX - ER760

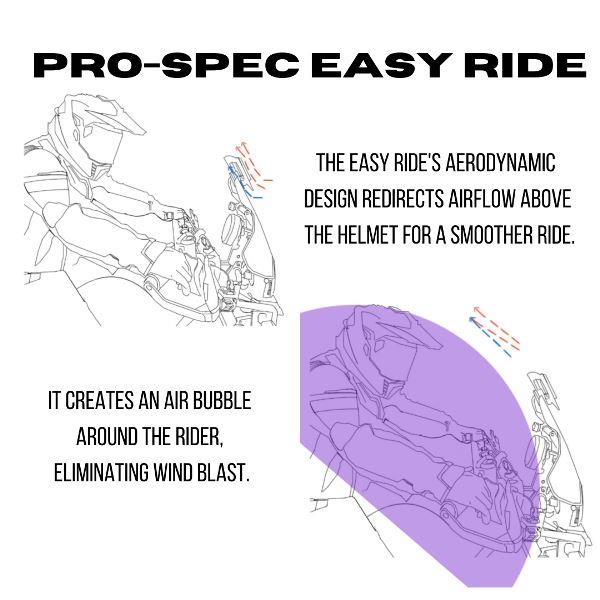

The Pro-Spec Easy Ride ER760 is a premium clip-on windshield extender engineered for adventure and touring riders seeking improved wind protection and long-distance comfort. Designed using the proven lip extender principle, the ER760 helps create a smoother aerodynamic air pocket around the rider by redirecting high-velocity airflow and reducing turbulence and wind noise.

Featuring a larger surface area, the ER760 is designed for tall and wide adventure-touring windscreens, providing enhanced wind deflection for a more comfortable and less fatiguing highway riding experience. Its height-adjustable design allows the airflow to be fine-tuned according to rider preference and riding conditions.

Key Features

• Larger Surface Area: Designed for full-size adventure and touring windscreens to provide greater airflow management.
• Improved Wind Protection: Helps redirect turbulent airflow and reduce windblast, turbulence, and riding fatigue.
• Height Adjustable: Allows riders to customize the extender position for improved comfort and aerodynamic efficiency.
• Clip-On Mounting: Installs without drilling or permanent modification to the original windshield.
• Adventure & Touring Design: Suitable for tall and wide motorcycle windscreens.
• Easy Installation: Supplied with the required mounting components and 2.5 mm Allen key.
• Secure Fitment: Compatible with suitable windscreens having a thickness between 3 mm and 5 mm.

Product Specifications

Product Type: Windshield Extender

Model: ER760

Mounting Type: Clip-On

Design: Large Surface Area / Extended Windshield Profile

Adjustment: Height Adjustable

Application: Adventure & Touring Motorcycles

Recommended Windscreen Thickness: 3–5 mm

Package Contents

Installation Guide

Note: Some components may arrive pre-assembled. The ER760 is designed for DIY installation, but professional assistance is recommended if required.

• Remove Lock Screws: Unscrew the two Lock Screws (7) from the clip-on mount.

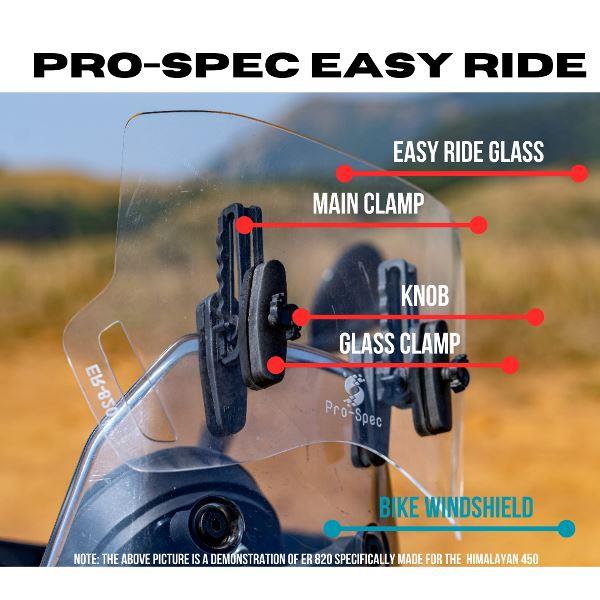

• Attach the Screen and Clamp: Place the extender screen with the front clamp over the slot on the height adjustment slider (2).
• Secure the Assembly: Tighten the assembly using the Lock Screws (7) as shown in Figure “b”.
• Adjust the Position: Loosen the CSK Allen Head Screws (6) using the included 2.5 mm Allen key.
• Align the Extender: Center the extender symmetrically on the motorcycle windscreen.
• Final Check: Retighten all screws securely and ensure the extender is firmly mounted before riding.

Maintenance & Care

• Clean using water, neutral soap, and a soft sponge or microfiber cloth.
• Do not use dry cloths, solvents, or abrasive materials, as they may cause permanent surface damage.
• Before installation, ensure the OE windshield is clean and free from anti-scratch coatings that may interfere with clamp adhesion.
• Check the mounting screws and clamp fitment regularly to ensure they remain secure.

Motorcycle Compatibility

Windscreen Compatibility

The Pro-Spec Easy Ride ER760 is designed for compatible OE or aftermarket windscreens with a thickness between 3 mm and 5 mm. Before installation, verify that the Triumph Tiger 1200 XCX windshield meets the recommended thickness range and is suitable for the clip-on mounting system.
