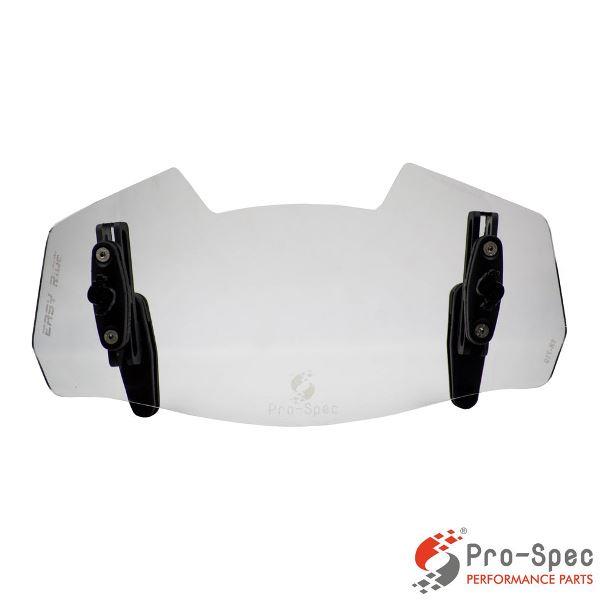

Pro-Spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 800 XCA / XCX - ER710

Pro-Spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 800 XCA / XCX - ER710

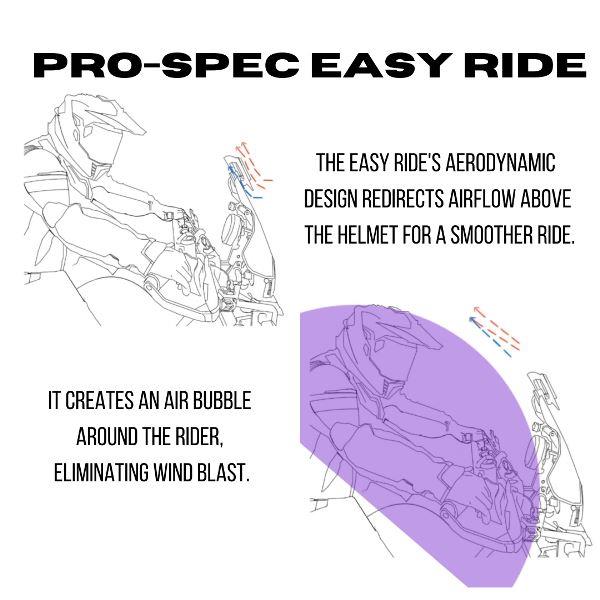

The Pro-Spec Easy Ride ER710 is a clip-on windshield extender specifically designed for the Triumph Tiger 800 XCA / XCX (2014–2017). Engineered for adventure-style windscreens, it uses the lip extender principle to help redirect high-velocity airflow, reducing windblast and helmet buffeting for a quieter and more comfortable riding experience.

Key Features

• Tailored fit for the OEM adventure windscreen of the Triumph Tiger 800 XCA / XCX (2014–2017).
• Lip extender principle helps deflect high-velocity airflow away from the rider.
• Height adjustable to suit different rider heights and seating positions.
• Tool-assisted clip-on mounting with no drilling or permanent modification required.
• Suitable for windscreens with a thickness of 3–5 mm.

Product Specifications

Product: Pro-Spec Easy Ride Windshield Extender

Part Number: ER710

Type: Adventure Windscreen Clip-on Extender

Mounting: Tool-assisted clip-on system

Height: Adjustable

Compatible Windscreen Thickness: 3–5 mm

Bike Compatibility

Brand: Triumph

Model: Tiger 800 XCA / XCX

Year: 2014–2017

Package Includes

• Windshield Extender Screen – 1 piece
• Height Adjustment Slider Set – 1 set
• Clip-On Mount Set – 1 set
• Front Clamp Set – 1 set
• CSK Allen Head Screw M4 x 16 mm – 4 pieces
• CSK Allen Head Screw M4 x 12 mm – 2 pieces
• Height Adjusting Lock Screws Set – 1 set
• 2.5 mm Allen Key – 1 piece

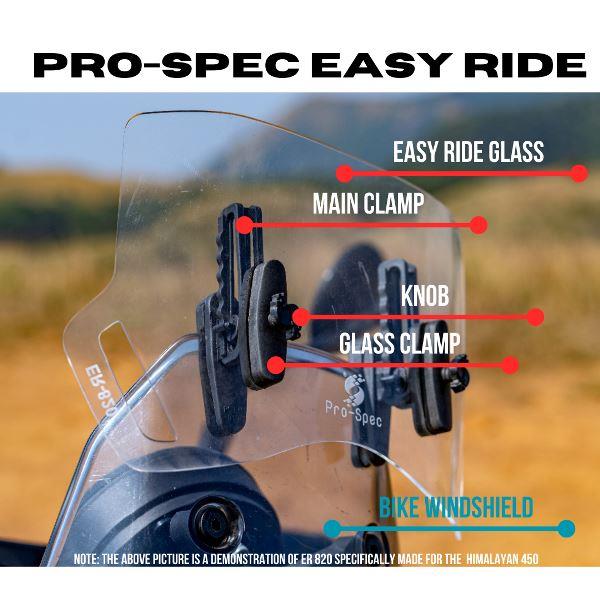

Installation Instructions

• Remove the two lock screws from the clip-on mount set.
• Position the extender screen and front clamp into the slot on the height adjustment slider.
• Secure the screen using the height adjusting lock screws.
• Loosen the CSK Allen screws using the supplied 2.5 mm Allen key.
• Align the extender symmetrically on the OEM windscreen.
• Retighten the screws securely after achieving the desired position.

Cleaning & Maintenance

• Clean with neutral soap and lukewarm water.
• Use a microfiber cloth for cleaning.
• Avoid dry cloths, solvents, and abrasive cleaning materials, as these may damage the surface.
• Ensure the OEM windscreen is free from anti-scratch coatings, as these could reduce clamp adhesion.

Important Information

Some components may come pre-assembled. While the ER710 is designed to support DIY installation, professional assistance is recommended if required.
