Pro-spec Easy Ride Windshield Extender Clip-on for RE-Himalayan BS6 - ER780
Pro-spec Easy Ride Windshield Extender Clip-on for RE-Himalayan BS6 - ER780
Pro-Spec
SKU:GF001798-1
Couldn't load pickup availability
- With Bill
- Fast Shipping
- Safe Packing

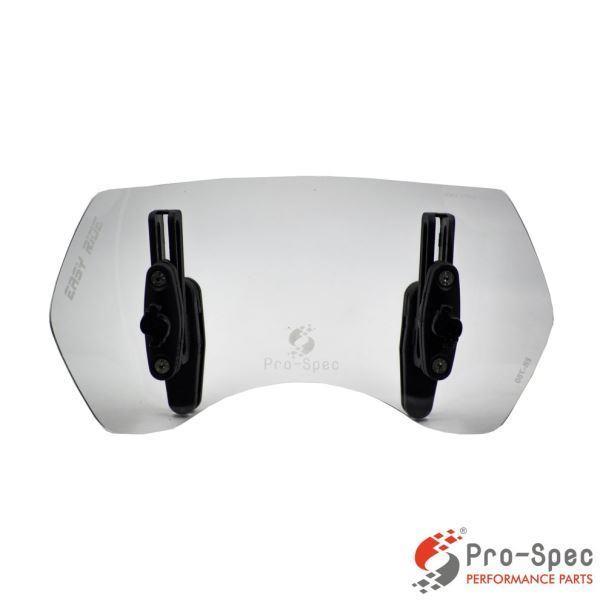

Pro-spec Easy Ride Windshield Extender Clip-on for RE-Himalayan BS6 - ER780
Conquer the Highway with Confidence
The Pro-Spec Easy Ride ER780 is a specialized clip-on windshield extender engineered to enhance wind protection for narrow-profile adventure windscreens, particularly the Royal Enfield Himalayan BS6 (2021 and later) .

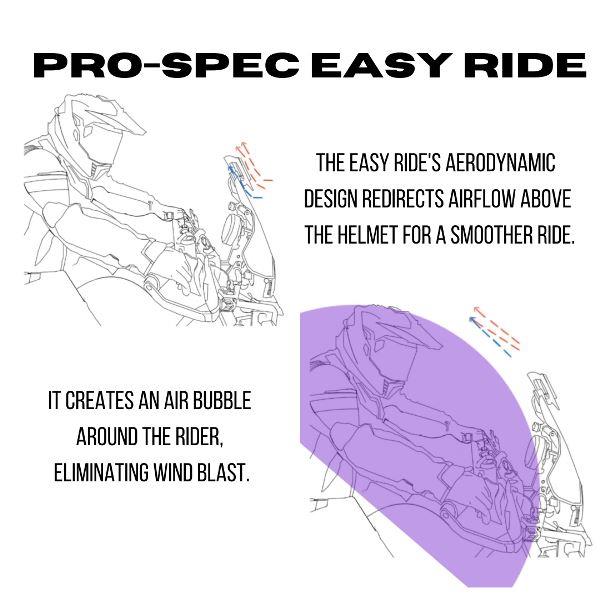

Using the lip extender principle, the ER780 creates a smooth-flowing air bubble that deflects high-speed wind away from the rider, reducing windblast, helmet buffeting, and fatigue. Ideal for touring or long-distance riding, it transforms your highway ride into a quiet, more comfortable experience.
Key Features
- Tailored Fit for Narrow Windscreens: Specifically designed for the Royal Enfield Himalayan’s stock windscreen.
- Height Adjustable: Personalize the extender height for optimal wind deflection.
- Non-Invasive Installation: Clip-on mounting system requires no drilling or permanent modifications.
- Secure Grip: Fits windscreen thicknesses between 3 – 5 mm.
Package Contents
| Sl. | Item Description | Quantity |
|---|---|---|
| 1 | Windshield Extender Screen | 1 |
| 2 | Height Adjustment Slider (Set) | 1 |
| 3 | Clip-On Mount (Set) | 1 |
| 4 | Front Clamp (Set) | 1 |
| 5 | CSK Allen Head Screw – M4 x 16 mm | 4 |
| 6 | CSK Allen Head Screw – M4 x 12 mm | 2 |
| 7 | Height Adjusting Lock Screws (Set) | 1 |
| 8 | 2.5 mm Allen Key | 1 |
🛠️ Installation Instructions
⚠️ Note: Some components may come pre-assembled. The extender is designed for DIY installation, but professional assistance is recommended if needed.
-
Remove Lock Screws
Unscrew the two Lock Screws (7) from the clip-on mount. -
Assemble the Screen and Clamp
Align the extender screen with the front clamp, and slide it into the height adjustment slider (2).
Secure it using the Lock Screws (7) (refer to figure “b”). -
Center and Tighten
Loosen the CSK Allen Head Screws (6) using the provided 2.5 mm Allen key.
Position the extender symmetrically over your stock windscreen, then tighten the screws to lock it in place.
Care & Maintenance
- Clean with water, neutral soap, and a soft sponge or microfiber cloth.
- Do not use dry cloths, solvents, or abrasive cleaners—these may cause surface scratches or permanent damage.
- Ensure the OE screen is free from anti-scratch coatings, which could reduce clamp grip.
Motorcycle Compatibility
- Royal Enfield Himalayan – BS6 Model (2021 and later)
📏 Recommended Windscreen Thickness : 3 – 5 mm
