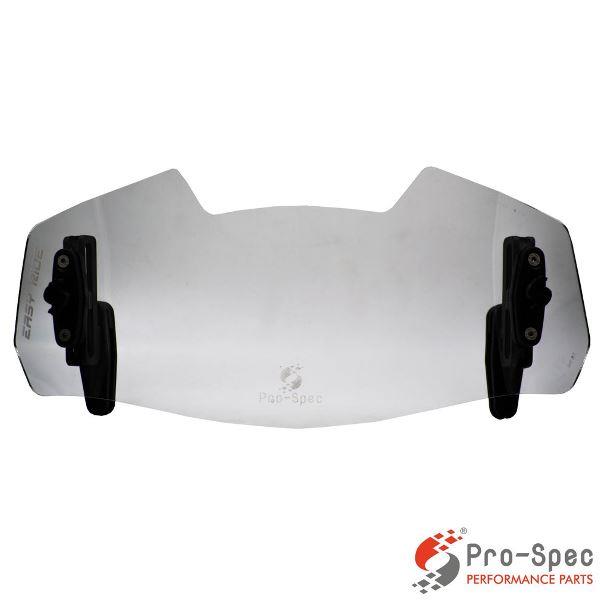

Pro-Spec Easy Ride Windshield Extender Clip-on - Suzuki V-Strom 650 - ER760
Designed for Large Adventure & Touring Windscreens
Engineered for Long-Distance Comfort

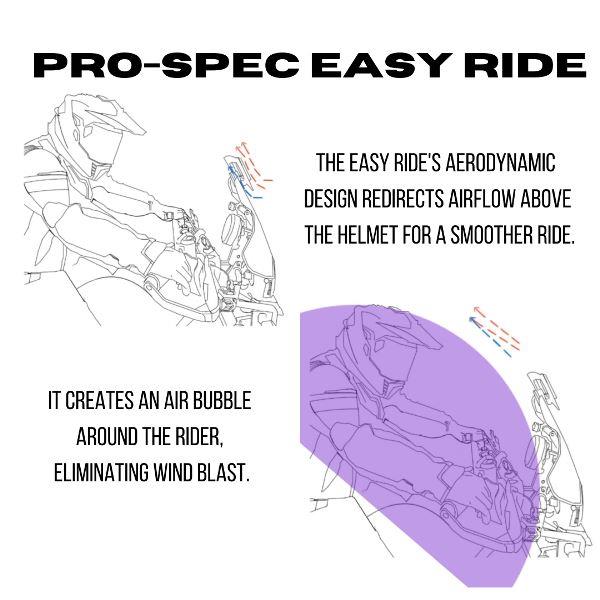

The Pro-Spec Easy Ride ER760 is a premium clip-on windshield extender designed to significantly reduce wind fatigue for adventure and touring riders. Using the lip extender principle, it creates a smooth, aerodynamic air pocket around the rider, deflecting high-velocity airflow and minimizing noise and turbulence.
With a larger surface area, the ER760 is optimized for tall and wide adventure windscreens, delivering maximum wind deflection and an enhanced highway riding experience.
Key Features
- Larger Surface Area: Designed to suit full-size ADV/touring windshields for greater airflow management.
- Height Adjustable: Customize for optimal comfort and aerodynamic efficiency.
- Clip-On Mounting: Easy to install without any drilling or permanent modification.
- Secure Fitment: Compatible with windscreen thicknesses from 3 – 5 mm.
Package Contents
| Sl. | Item Description | Quantity |
|---|---|---|
| 1 | Windshield Extender Screen | 1 |
| 2 | Height Adjustment Slider (Set) | 1 |
| 3 | Clip-On Mount (Set) | 1 |
| 4 | Front Clamp (Set) | 1 |
| 5 | CSK Allen Head Screw – M4 x 16 mm | 4 |
| 6 | CSK Allen Head Screw – M4 x 12 mm | 2 |
| 7 | Height Adjusting Lock Screws (Set) | 1 |
| 8 | 2.5 mm Allen Key | 1 |
🛠️ Installation Guide
⚠️ Note: Some components may be pre-assembled. DIY installation is possible, but professional assistance is recommended if needed.
-
Remove Lock Screws
Unscrew the two Lock Screws (7) from the clip-on mount. -
Attach the Screen and Clamp
Place the extender screen with the front clamp over the slot on the height adjustment slider (2).
Secure the assembly using the Lock Screws (7) (see Figure “b”). -
Adjust & Align
Loosen the CSK Allen Head Screws (6) with the included 2.5 mm Allen key.
Center the extender symmetrically on your windscreen, then retighten the screws.
Maintenance & Care
- Clean with water, neutral soap, and a soft sponge or microfiber cloth.
- Do not use dry cloths, solvents, or abrasives to avoid permanent surface damage.
- Before installation, clean your OE windshield of any anti-scratch coatings, which may interfere with clamp adhesion.
Motorcycle Compatibility
| S. No. | Brand | Model |
|---|---|---|
| 1 | Triumph | Tiger 1200 XCX |
| 2 | Triumph | Tiger 1200 XRX |
| 3 | Ducati | Multistrada 1250 |
| 4 | Ducati | Multistrada 950 |
| 5 | Suzuki | V-Strom 1000 |
| 6 | Suzuki | V-Strom 650 |
| 7 | BMW | R 1250 GS Adventure |
| 8 | BMW | R 1200 GS Adventure |
| 9 | Kawasaki | Versys 1000 |
| 10 | Kawasaki | Versys 650 |
📏 Recommended Windscreen Thickness : 3 – 5 mm
