Pro-spec Easy Ride Windshield Extender Clip-on for Super Meteor 650 - ER 810

Pro-Spec Easy Ride Windshield Extender Clip-on for Royal Enfield Super Meteor 650 - ER 810

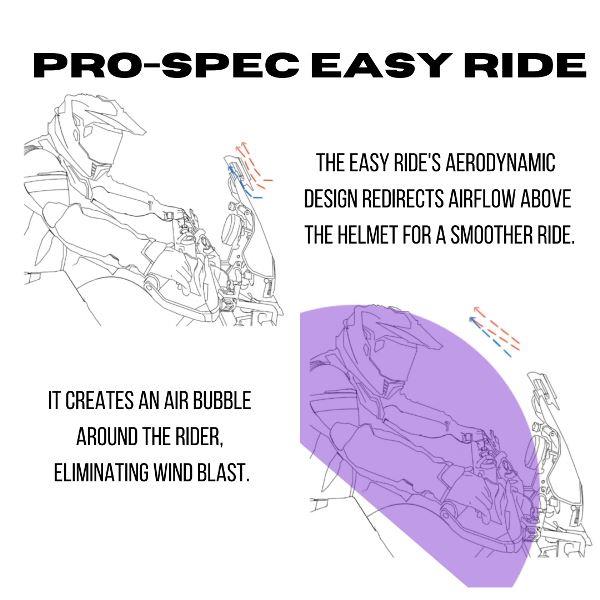

The Pro-Spec Easy Ride ER810 is a premium clip-on windshield extender designed to enhance long-distance cruising on the Royal Enfield Super Meteor 650. Utilizing the lip extender principle, the ER810 creates a stable air bubble in front of the rider, helping to reduce wind noise and turbulence.

With a larger surface area, this model is optimized for the cruiser-style riding posture and the Super Meteor 650's stock windscreen. It helps deflect high-velocity airflow and provides a smoother, more relaxed riding experience on highways.

Key Features

• Custom-Fit Profile: Engineered for the unique curvature and dimensions of the Super Meteor 650's stock windscreen.
• Large Surface Area: Helps deflect more wind, providing improved upper-body protection during long rides.
• Height Adjustable: Adjust the extender height to suit your riding style and wind conditions.
• Clip-On Mounting: Easy, non-permanent installation with no drilling required.
• Windscreen Compatibility: Fits windscreen thicknesses between 3 – 5 mm.

Package Contents

• Windshield Extender Screen – 1
• Height Adjustment Slider (Set) – 1
• Clip-On Mount (Set) – 1
• Front Clamp (Set) – 1
• CSK Allen Head Screw – M4 x 16 mm – 4
• CSK Allen Head Screw – M4 x 12 mm – 2
• Height Adjusting Lock Screws (Set) – 1
• 2.5 mm Allen Key – 1

Installation Instructions

Note: While the ER810 is designed for DIY installation, professional help is recommended if you encounter difficulties. Some parts may come pre-assembled.

1. Detach Lock Screws: Remove the two Lock Screws (7) from the clip-on set.

2. Mount the Screen: Place the extender screen and front clamp into the slot of the height adjustment slider (2). Secure the setup using the Lock Screws (7) as shown in the installation guide.

3. Center and Secure: Loosen the CSK Allen Head Screws (6) using the supplied 2.5 mm Allen key. Adjust the extender symmetrically over your OE windscreen and tighten the screws to lock it in position.

Cleaning & Maintenance

• Clean with neutral soap, water, and a soft sponge or microfiber cloth.
• Avoid dry cloths, solvents, or abrasives to prevent permanent surface damage.
• Ensure the OE screen is free of any anti-scratch coatings, as these may reduce the grip strength of the clamp.

Compatibility

Motorcycle: Royal Enfield Super Meteor 650

Windscreen Type: Stock screen only; not suitable for aftermarket tall screens.

Product Specifications

Model: ER 810

Mounting Type: Clip-On

Height Adjustment: Adjustable

Recommended Windscreen Thickness: 3 – 5 mm

Application: Royal Enfield Super Meteor 650
