RAM® Mounts Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud (RAM-B-166-202AU)
RAM® Mounts Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud (RAM-B-166-202AU)
Ram Mounts
SKU:
Couldn't load pickup availability
- With Bill
- Fast Shipping
- Safe Packing
RAM® Mounts Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud (RAM-B-166-202AU)

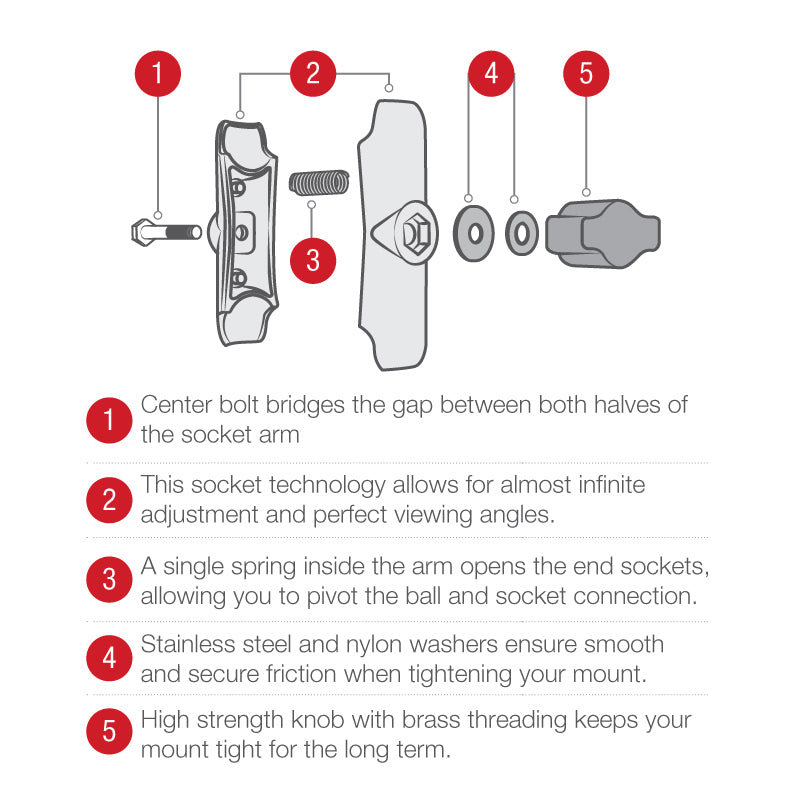

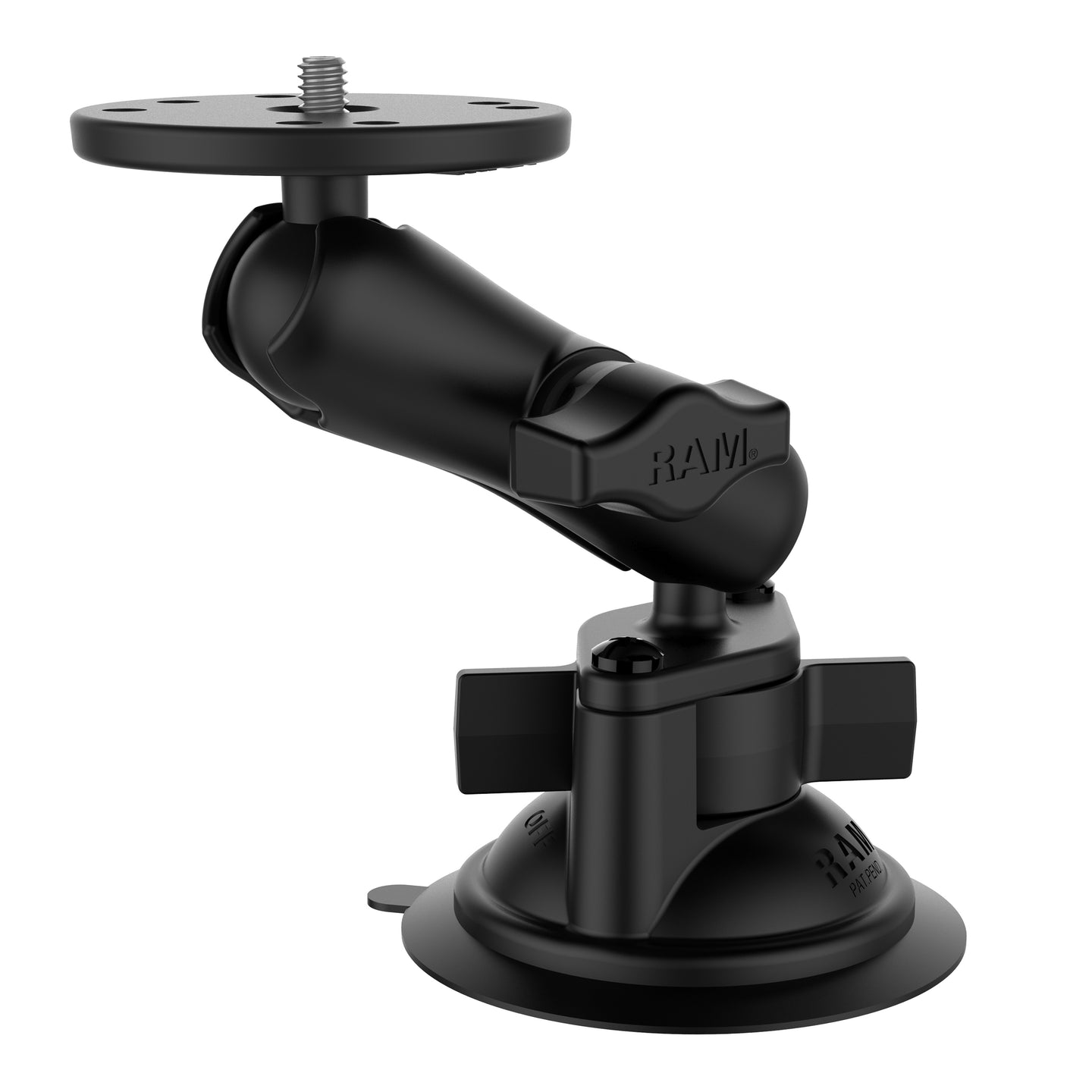

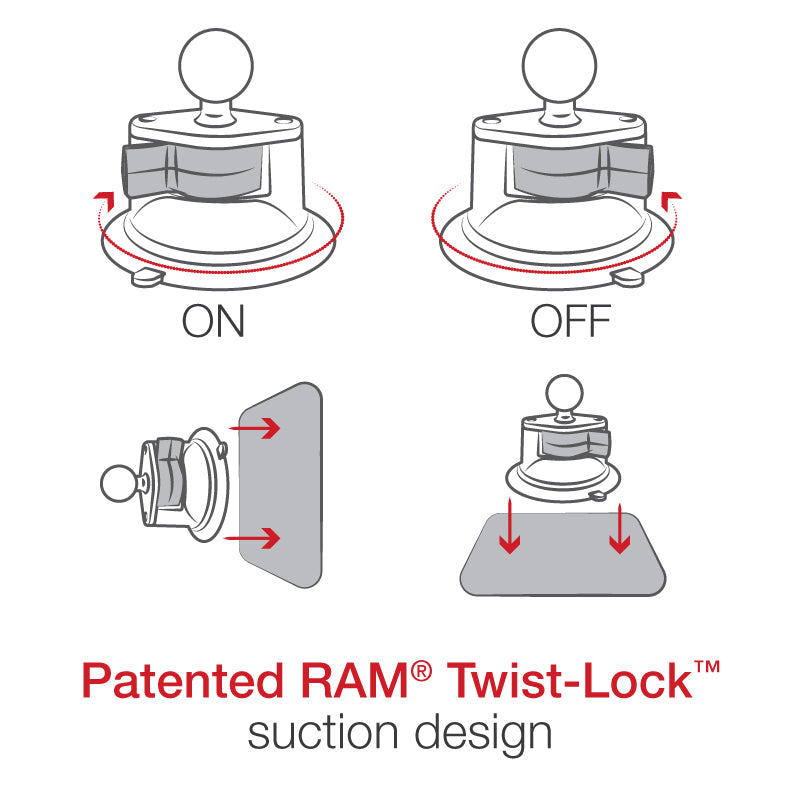

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
Specifications
| Specification | Details |
|---|---|
| Hardware Included | Assembly Hardware |
| Overall Height | 6.69 in |
| Suction Size | 3.3 in Diameter |
| Socket-to-Socket Length | 3 in |
| Hole Pattern | 4-Hole AMPS: 1.181 in × 1.496 in3-Hole 120-Degree: 1.812 in Diameter |
| Thread Pitch | 1/4"-20 × 0.25 in |
| Plate Size | 2.5 in Diameter |
| Ball Size | B Size (1 in) |
| Weight Capacity | Standard Use: 2 lb; Heavy-Duty Use: 1 lb |
| Materials | Marine-grade aluminum, high-strength composite |
| Packaging Type | Poly Bag |
| Product Weight | 0.67 lb |
