Revbot Mototech Quick Release Adaptors - QR1

REVBOT Mototech QR1 Wired Quick Release Adaptors – All-in-One Motorcycle Auxiliary Light Mounting System

REVBOT Mototech QR1 Wired Quick Release Adaptors are an advanced quick-release mounting and electrical connection system designed for premium motorcycle fog lights, auxiliary LED lights and multi-function lighting pods. The innovative all-in-one quick-release adapter system combines mechanical mounting and electrical connectivity into a single docking action, allowing compatible auxiliary lights to be installed or removed quickly without manually disconnecting separate wiring plugs.

Designed for high-end motorcycle auxiliary lighting systems such as the REVBOT LUXON Ultra series, the QR1 provides a cleaner, faster and more convenient way to manage removable auxiliary lights. Simply dock the compatible light into the receiver to mechanically lock the mounting system and establish the electrical connection simultaneously.

With 3-wire electrical support, integrated contact pins, weather-resistant construction, anti-theft locking keys and heavy-duty stainless steel mounting hardware, the REVBOT QR1 is engineered for riders who demand convenience, reliability and secure mounting for touring, adventure and everyday motorcycle use.

All-in-One Wired Quick Release System

Unlike conventional motorcycle quick-release brackets that require a separate waterproof electrical connector to be unplugged after removing the light, the REVBOT QR1 Wired Quick Release System combines the mounting connection and electrical connection into one integrated docking mechanism.

When the compatible auxiliary light is slid into position, the system simultaneously engages the mechanical mount and electrical contacts. When released, the electrical connection is disconnected along with the mounting system, eliminating the need to manually handle separate pigtail connectors every time the light is removed.

• Single-Action Docking: Mounting and electrical connection are combined into one quick-release action.
• Fast Light Removal: Remove compatible auxiliary lights without unplugging a separate wiring connector.
• Fast Reinstallation: Dock the light back into position and restore the electrical connection simultaneously.
• Cleaner Installation: Helps reduce exposed connector handling around removable auxiliary lights.
• Reusable Design: Built for repeated installation and removal.

Integrated Quick-Release Power Contact Pins

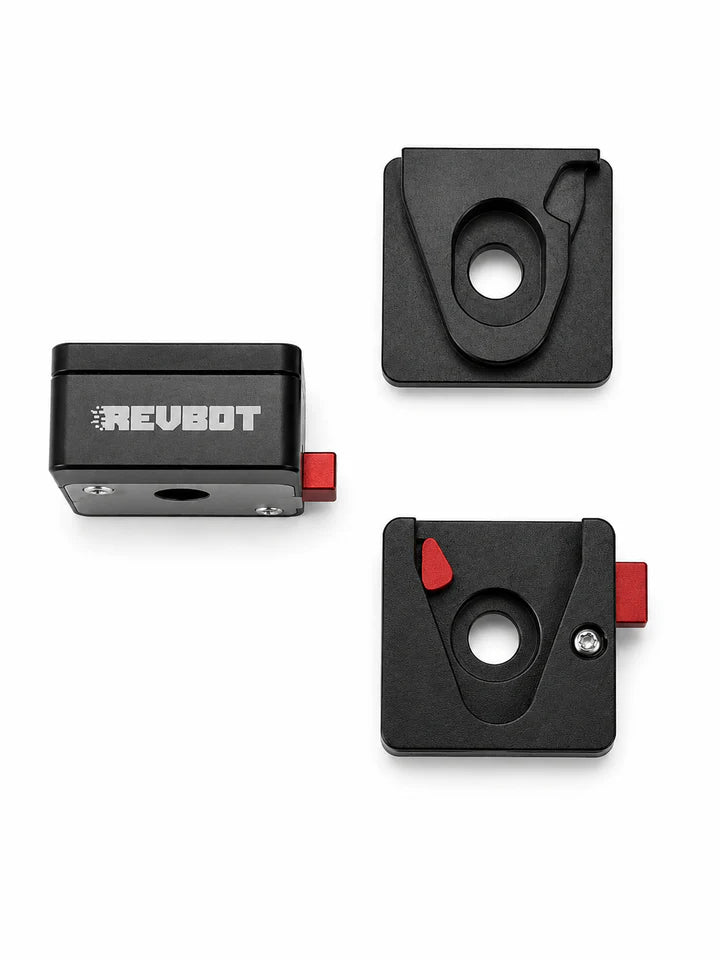

The QR1 features integrated male-to-female electrical contact pins inside the interlocking quick-release blocks. The specialized terminal connection allows electrical power to flow when the light-side and vehicle-side blocks are fully docked and disconnects when the system is released.

This integrated design makes the QR1 particularly useful for premium motorcycle auxiliary lights where multiple electrical functions need to remain connected without repeatedly handling separate wiring plugs.

3-Wire Support for Advanced Motorcycle Auxiliary Lights

The REVBOT QR1 uses 3-core insulated wiring leads with red, black and blue wires to support compatible multi-function auxiliary lights. The three-wire configuration can accommodate lighting systems with additional control functions, depending on the connected light and wiring configuration.

Compatible applications may include auxiliary lights featuring:

• Dual-intensity lighting
• High/low beam switching
• Independent DRL functionality
• Multi-function auxiliary LED modes
• Additional compatible lighting controls

Important: Electrical compatibility depends on the auxiliary light, controller, wiring configuration and electrical requirements. Always verify pin configuration and polarity before installation.

Weather-Resistant Quick Release Electrical Connection

The QR1 quick-release blocks are designed to protect the integrated electrical contacts when the mating sections are fully connected. The enclosed connection helps shield the electrical interface from common outdoor riding conditions such as water, dust, mud and road debris.

The interlocking design also helps isolate the electrical connection from vibration when correctly installed. This makes the QR1 suitable for motorcycle touring, adventure riding and other applications where the auxiliary lighting system may experience continuous road vibration.

Note: The supplied product information describes the system as weatherproof/IP-rated, but no specific IP rating number was provided. Do not claim a specific IP67, IP68 or other rating unless independently verified for the product.

Anti-Theft Quick Release Security

Premium auxiliary lights can be expensive accessories, which makes secure mounting particularly important when a motorcycle is parked. The REVBOT QR1 includes two specialized anti-theft security keys designed to lock and unlock the quick-release mechanism.

Once locked, the release mechanism is immobilized, helping prevent unauthorized removal of compatible auxiliary lights from the motorcycle. This provides an additional layer of security beyond the mechanical quick-release function.

High-Vibration Motorcycle Mounting Design

The QR1 is engineered for demanding motorcycle environments where mounting hardware can be exposed to continuous vibration. The system includes heavy-duty stainless steel mounting hardware designed to provide a secure connection when correctly installed.

The robust mounting hardware makes the QR1 suitable for compatible adventure motorcycles, touring motorcycles, V-twin motorcycles, single-cylinder motorcycles and other motorcycles where auxiliary lighting systems may experience significant vibration.

Ideal for REVBOT LUXON Ultra Auxiliary Lights

The REVBOT QR1 Quick Release Adaptor is designed for premium multi-function motorcycle auxiliary lights, including compatible REVBOT LUXON Ultra series lighting systems.

When paired with a compatible auxiliary light, the QR1 provides a convenient solution for riders who regularly need to remove and reinstall their lighting setup while keeping the primary mounting and wiring system organized on the motorcycle.

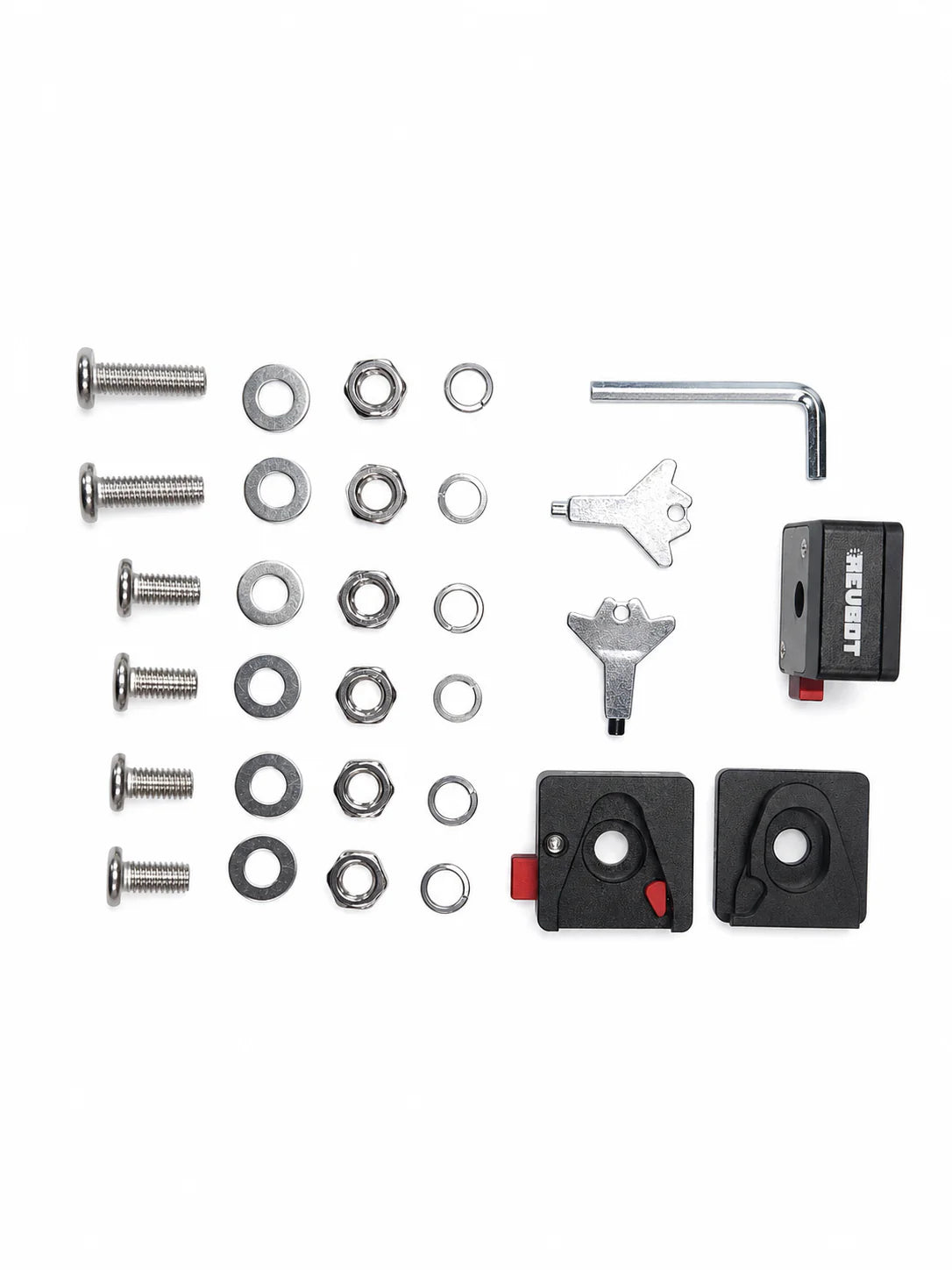

What's Included in the Box?

• 1 × Fully Assembled Profile Block – Left: Reference profile showing the internal channel and wiring alignment when docked.
• 2 × Mating Quick-Release Power Blocks: Vehicle-side receiver and light-side adaptor, pre-wired with 3-core insulated leads and integrated terminal pins.
• 2 × Proprietary Anti-Theft Keys: Wing-handled security tools for locking and unlocking the release mechanism.
• 1 × Complete Stainless Steel Hardware Pack
• 6 × Heavy-Duty Mounting Bolts
• 6 × Flat Washers
• 6 × Split-Ring Lock Washers
• 6 × Hex Nuts
• 1 × Allen Wrench: For installation.

REVBOT QR1 Technical Specifications

Why Choose the REVBOT QR1 Wired Quick Release Adaptor?

• All-in-One Design: Combines mechanical mounting and electrical connection in one system.
• Quick Installation and Removal: Dock or release compatible lights without manually disconnecting separate power plugs.
• 3-Wire Connectivity: Designed for compatible multi-function auxiliary lighting systems.
• Integrated Contact Pins: Electrical connection is established when the quick-release blocks are docked.
• Weather-Resistant Design: Enclosed electrical contacts help protect the connection during outdoor riding.
• Anti-Theft Security: Includes specialized locking keys to secure the quick-release mechanism.
• Heavy-Duty Hardware: Stainless steel mounting hardware is designed for reliable motorcycle use.
• Adventure Ready: Suitable for compatible touring, adventure and high-vibration motorcycle applications.
• Clean Installation: Helps create a more organized removable auxiliary light setup.
• Reusable System: Designed for repeated docking and removal of compatible lights.

Quick-Release Mounting for Touring and Adventure Motorcycles

The REVBOT QR1 is especially useful for riders who frequently switch between different riding environments. Whether you are touring long distances, commuting through the city or preparing for an adventure ride, the quick-release system allows compatible auxiliary lights to be removed and reinstalled without repeatedly disconnecting separate wiring connectors.

This makes the QR1 a practical upgrade for riders searching for a wired motorcycle quick release adaptor, motorcycle auxiliary light quick release mount, quick release fog light bracket, motorcycle LED light quick release system or integrated auxiliary light mounting adaptor.

Installation and Safety

Install the REVBOT QR1 only on a suitable and structurally secure mounting point. Ensure that the vehicle-side and light-side blocks are fully seated and locked before riding.

Verify the electrical polarity, wiring configuration and compatibility with your auxiliary light before connecting the system. Incorrect wiring or incompatible electrical connections may damage the adaptor, lighting system or motorcycle electrical components.

Before every ride, confirm that the mechanical release is fully locked and that the auxiliary light is securely mounted. Periodically inspect the mounting bolts, electrical contacts, wiring and locking mechanism, particularly after rough-road or off-road riding.

Upgrade Your Motorcycle Auxiliary Lighting Setup

The REVBOT Mototech QR1 Wired Quick Release Adaptors provide a smarter way to manage compatible motorcycle auxiliary lights by combining the physical mounting connection and electrical connection into one integrated quick-release system.

With 3-wire support, integrated electrical contact pins, weather-resistant construction, anti-theft locking keys and heavy-duty stainless steel hardware, the QR1 is designed for riders who want faster light removal, easier reinstallation and a cleaner auxiliary lighting setup.

Buy REVBOT Mototech QR1 Quick Release Adaptors

Upgrade your compatible motorcycle auxiliary lighting system with the REVBOT QR1 Wired Quick Release Adaptor. Designed for premium multi-function LED auxiliary lights and compatible REVBOT LUXON Ultra series products, the QR1 brings mounting and electrical connectivity together into a convenient single-action docking system.
