Scottoiler eSystem v3.1 - SO-9005

Scottoiler eSystem v3.1 - SO-9005

The Scottoiler eSystem v3.1 is an advanced electronic motorcycle chain oiling system designed for riders who want precise control over chain lubrication and reduced chain maintenance. As Scottoiler's premium electronic chain lubrication system, the eSystem v3.1 combines an electronically pumped oil delivery system with an improved LED display, self-calibration, additional flow-rate settings, and memory that retains settings between rides.

The system connects directly to the motorcycle battery and features a display unit that sits between the handlebars, allowing the rider to monitor and adjust oil flow easily while riding. Its plug-and-play design makes installation quick and straightforward without complicated wiring or the need to tap into speedometers or switches.

Highlights

• Advanced electronic motorcycle chain oiler
• Helps increase chain and sprocket life
• Easy and quick installation
• Significantly reduces the need for manual motorcycle chain maintenance
• Display unit mounts conveniently between the handlebars
• Quick start-up with additional flow-rate settings
• Self-calibrating system
• Retains pre-established settings between rides
• One-touch flow-rate adjustment
• Triple-axis accelerometer technology derived from MotoGP applications
• Displays flow rate, temperature in Celsius, oil level, and accelerometer information

How It Works

The eSystem v3.1 is an electronically pumped motorcycle chain oiler that requires a small power feed from the motorcycle battery. The wiring loom connects directly to the battery for plug-and-play installation, without complicated wiring or tapping into speedometers or switches.

The electronically controlled reservoir pump delivers oil from the reservoir through the dispenser onto the chain and sprocket. The system provides the rider with precise control over the oil flow rate, allowing the lubrication rate to be adjusted according to riding conditions.

A triple-axis accelerometer senses vibration and movement. When the engine is running and the motorcycle is moving, the system activates its oiling mode. The display provides information including the current flow rate, temperature in Celsius, oil level, and accelerometer readout.

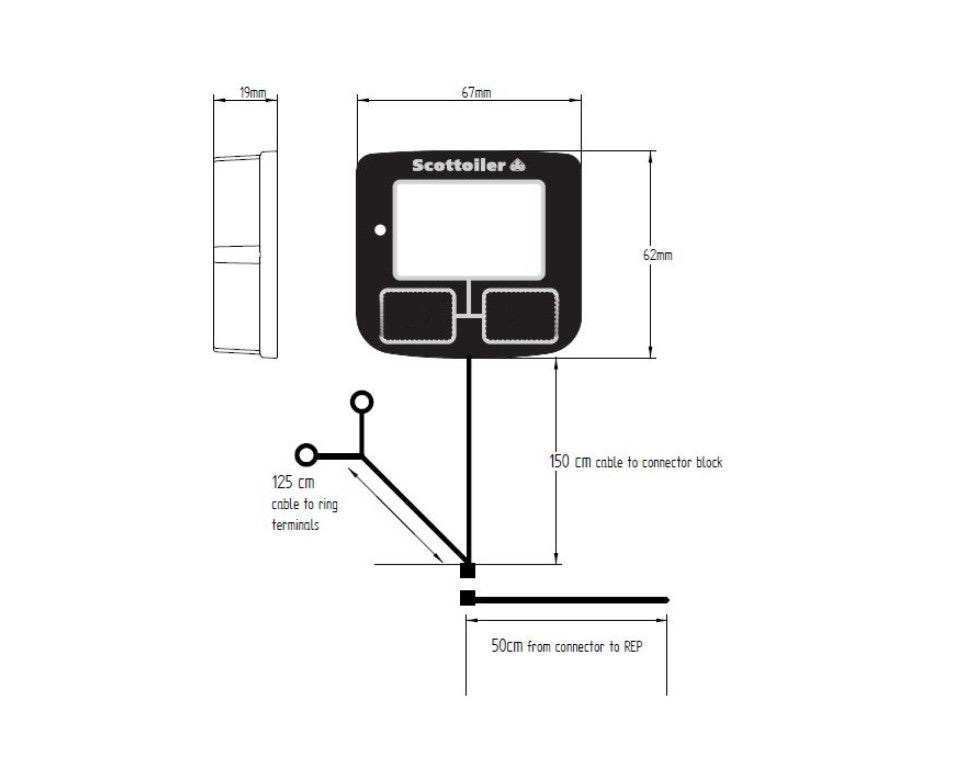

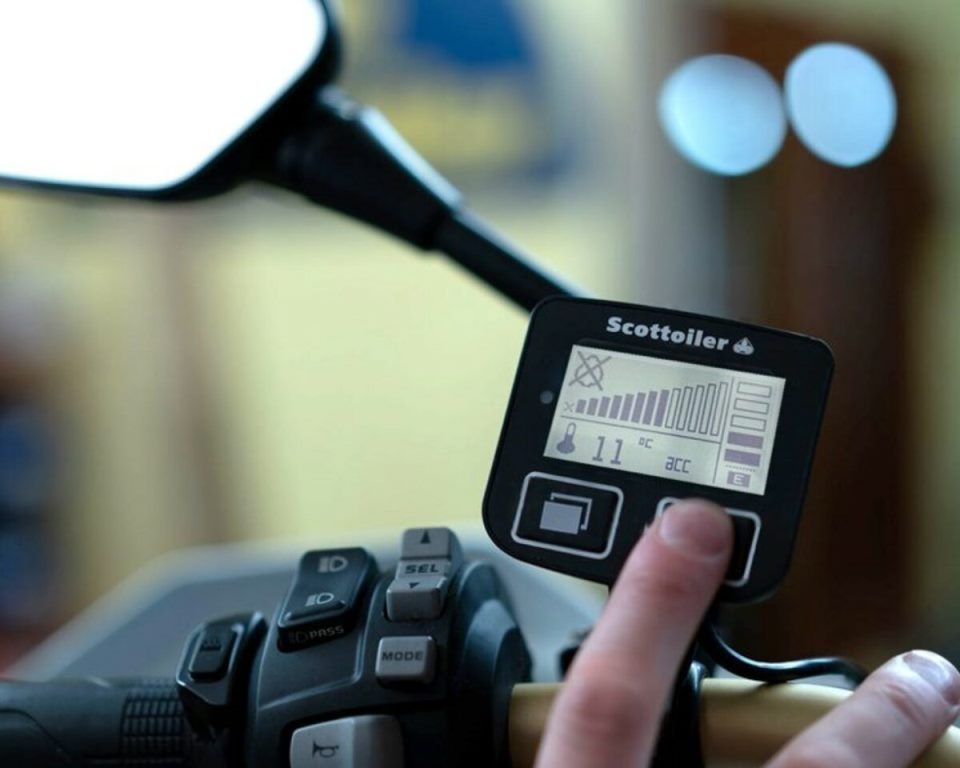

Display & Control

The improved eSystem v3.1 display unit provides convenient control of the chain oiling system from between the handlebars. It features additional flow-rate settings, self-calibration, and smart memory that retains established settings even when the system is disconnected from the motorcycle battery.

The one-touch controls allow the rider to quickly adjust the oil flow rate to suit different riding conditions. The redesigned buttons and interface are designed for intuitive operation and easy access while riding.

Installation

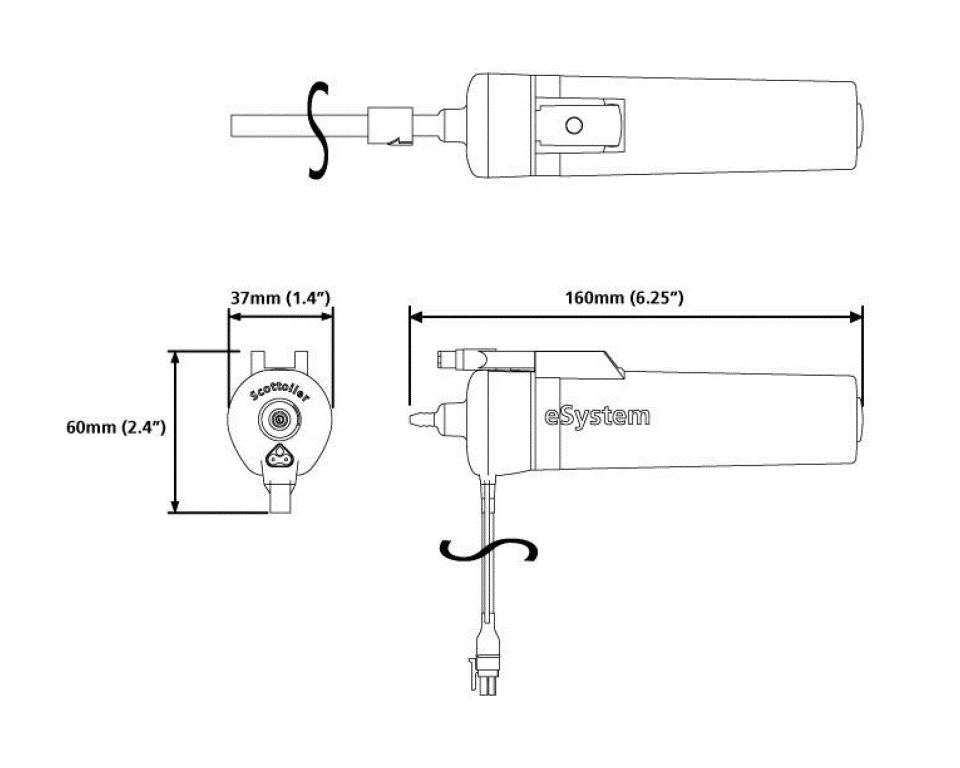

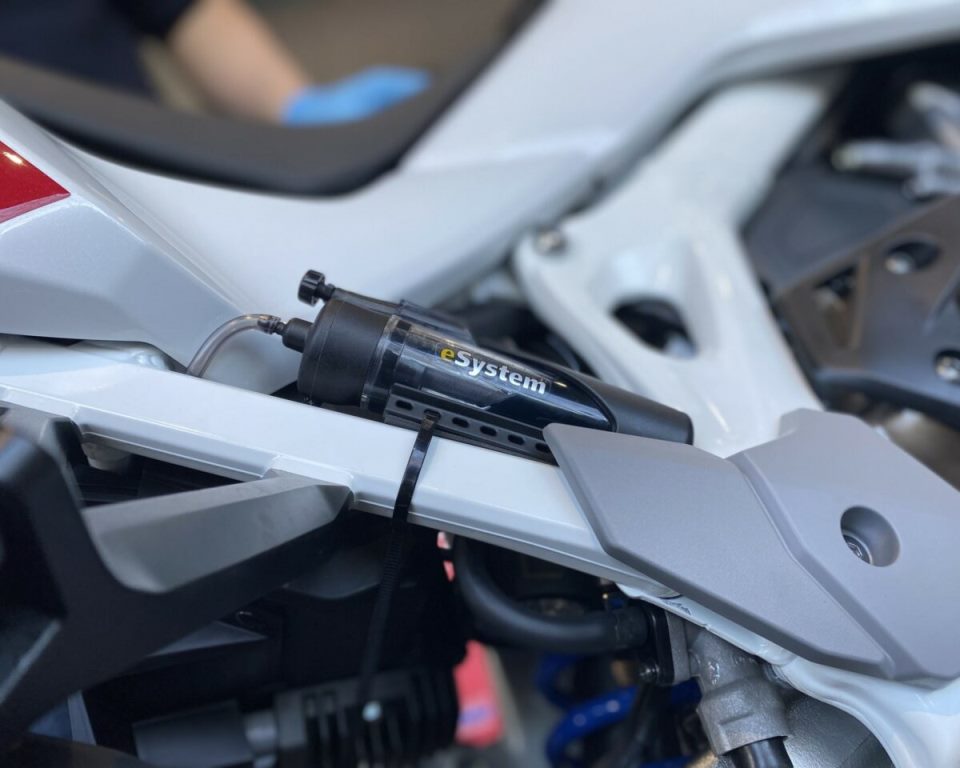

The eSystem v3.1 can be installed on most motorcycles in under an hour. The reservoir can be mounted on the motorcycle mainframe, while the dispenser is positioned above the sprocket face for effective oil delivery to the chain.

The kit includes the wiring loom, dispenser, display bracket, tubing, clips, and required fitting components for a straightforward installation.

Reservoir Range

The reservoir provides a range of up to 2,400 km between refills, depending on factors such as flow rate and riding speed. The system indicates when the oil level is running low so that the reservoir can be topped up.

Battery Power Consumption

When the motorcycle engine is off, the system draws less than 1 milliamp of power. This low power consumption helps minimize battery drain while the motorcycle is not in use.

Product Specifications

Product: Scottoiler eSystem v3.1

Part Number: SO-9005

System Type: Electronic motorcycle chain oiler

Power Connection: Motorcycle battery

Flow Control: Adjustable flow-rate settings

Reservoir Range: Up to 2,400 km between refills, depending on flow rate, speed, and riding conditions

Off-State Power Consumption: Less than 1 milliamp

Dimensions: 22.6 x 22.4 x 6.8 cm

Weight: 800 grams

Oil Capacity Included: 250 ml Scottoil

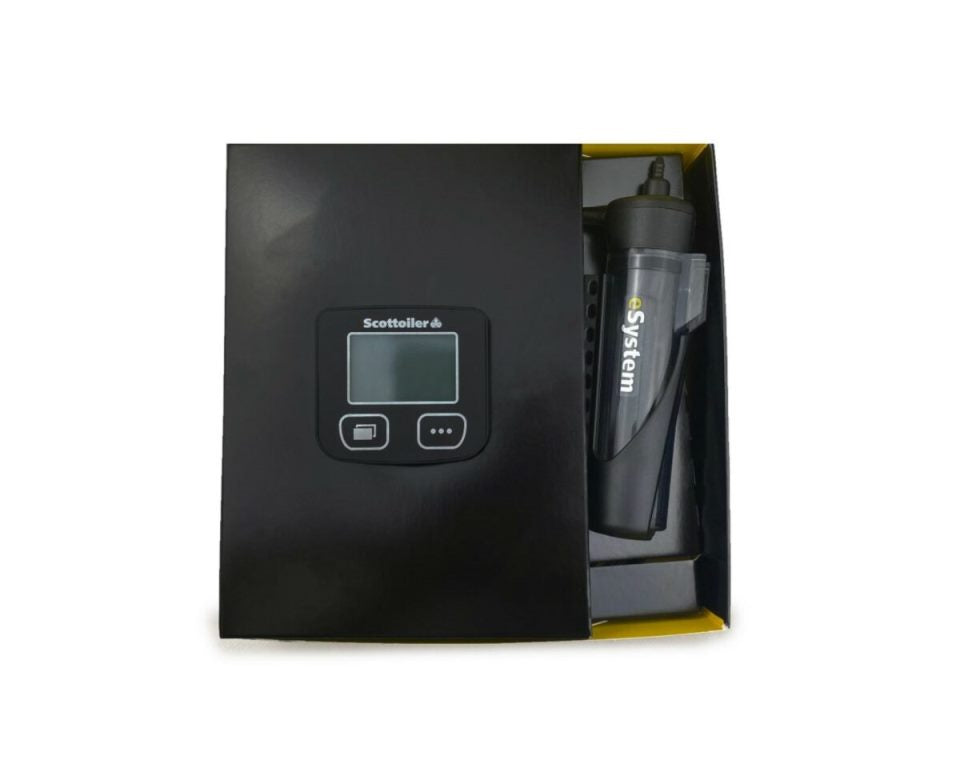

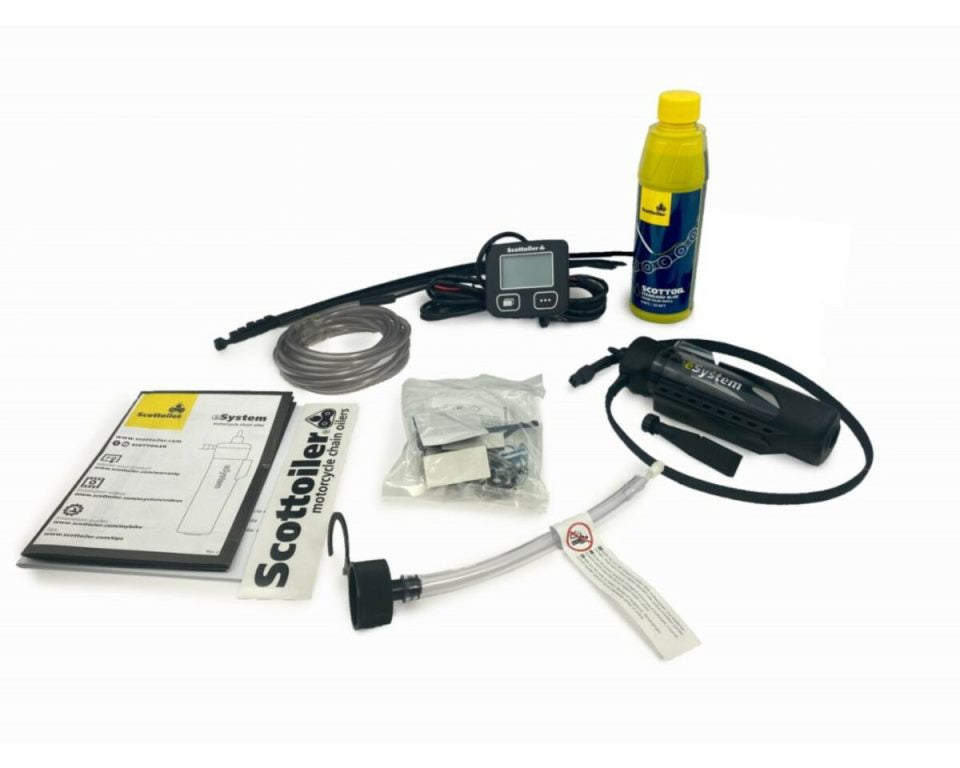

What's in the Box?

• Scottoiler eSystem v3.1 Kit x 1
• Display unit
• Scottoiler reservoir
• 250 ml bottle of Scottoil
• Tubing
• Clips
• Display bracket
• Installation instructions
• Operating guide

Frequently Asked Questions

How does the Scottoiler eSystem motorbike chain oiler work?

The eSystem is electronically pumped, forcing oil from the reservoir to the motorcycle chain through the reservoir pump and dispenser.

How far can I travel before refilling the reservoir?

The reservoir can provide up to 2,400 km of use between refills, depending on flow rate, riding speed, and other riding conditions. The system indicates when the oil level is low.

How much power does the system use?

When the engine is off, the system draws less than 1 milliamp of power, helping minimize battery drain.

What oil does the Scottoiler eSystem use?

Scottoiler motorcycle chain oiling kits use specially developed Scottoiler oil. The oil includes a low-tack additive designed to help prevent dirt from sticking while lubricating the chain and helping protect it against corrosion.
