SW-Motech PRO Tank Ring For Ducati Diavel V4 3G (22-24) - TRT.00.787.30000/B

SW-Motech PRO Tank Ring For Ducati Diavel V4 3G (22-24) - TRT.00.787.30000/B

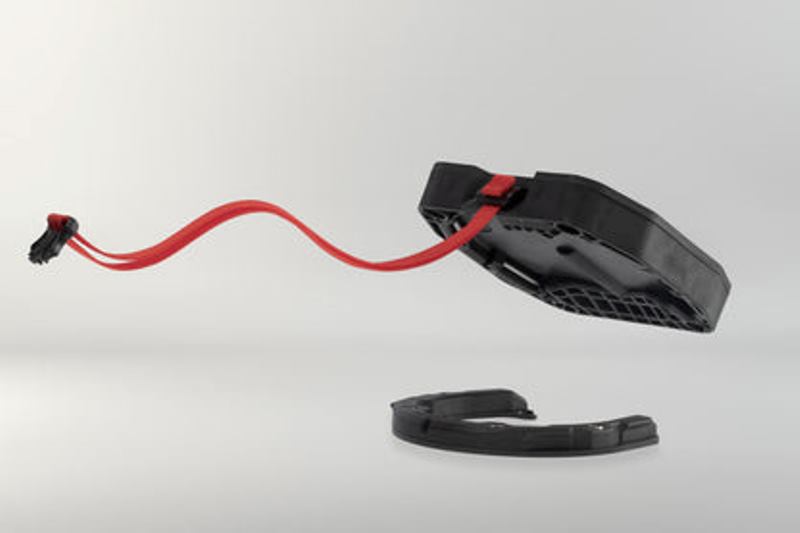

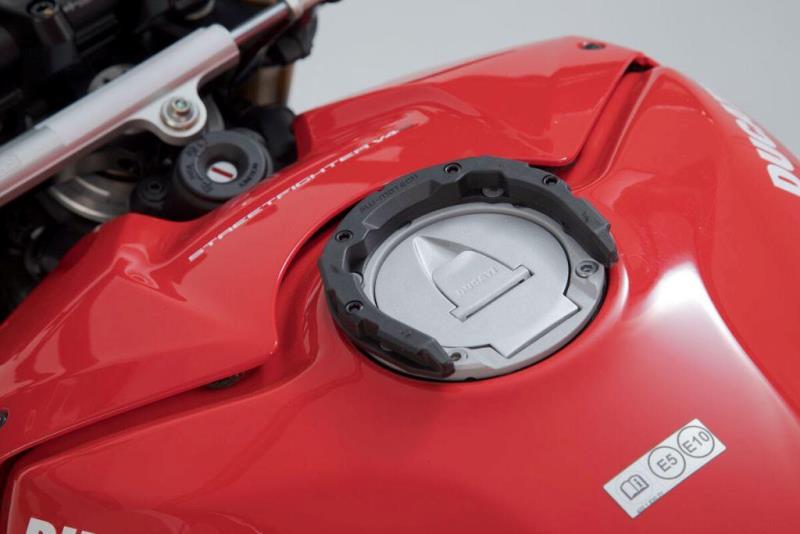

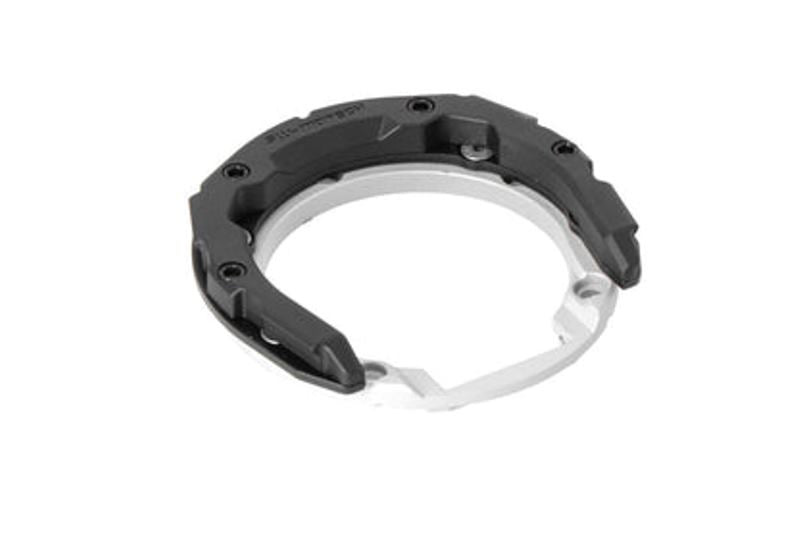

The SW-Motech PRO Tank Ring is a bike-specific tank mounting solution designed for the Ducati Diavel V4 3G (2022-2024). It replaces the factory-installed tank filler with a dedicated tank ring adapter and provides a secure mounting point for SW-Motech PRO tank bags. The proven QUICK-LOCK mechanism is enhanced with a Fidlock magnetic guide, making tank bag positioning and attachment quick, precise, and convenient.

Features

• Bike-specific adapter ring designed for the best fit and customized solution.
• Simple mounting directly onto the motorcycle's tank neck.
• Fidlock magnetic guide aid helps position the tank bag easily.
• Patented PRO tank ring provides a secure hold for PRO tank bags.
• Mechanical QUICK-LOCK locking system securely fastens the tank bag.
• Quick release via pull straps allows the PRO tank bag to be removed with one movement.
• Sliding upper ring comes pre-assembled on the tank bag with a guide rail.
• Upper ring position can be custom-aligned on the underside of the tank bag.
• No drilling of the tank bag is required.
• Upper ring position can be readjusted when transferring the tank bag to another motorcycle.
• Tank lid can be opened normally for easy refueling.
• Tank bag does not rest directly on the motorcycle tank, helping protect the paintwork.
• High-precision locking geometry keeps the tank bag firmly secured.
• Made from fiberglass-reinforced polyamide/plastic for durability.

Compatibility

Motorcycle: Ducati Diavel V4 3G (2022-2024)

How It Works

For this PRO tank ring model, the factory-installed tank filler is replaced by the supplied tank ring adapter. The PRO tank ring then attaches to the adapter and provides the mounting interface for compatible PRO tank bags.

The Fidlock magnetic guide helps bring the upper and lower rings into the correct position. Once aligned, the mechanical QUICK-LOCK system snaps securely into place. The magnets assist with positioning, while the mechanical locking mechanism provides the secure connection required during riding.

Installation & Adjustment

• Replace the factory-installed tank filler with the supplied tank ring adapter.
• Mount the PRO tank ring onto the tank ring adapter.
• Position the upper ring using the guide rail on the underside of the PRO tank bag.
• Once the correct position is found, screw the upper ring securely into place.
• The upper ring position can be adjusted if the tank bag is transferred to another compatible motorcycle.

Included in Delivery

• 1 x PRO Tank Ring
• 1 x Tank Ring Adapter
• Mounting Instructions
• Mounting Material

Product Specifications

Brand: SW-Motech

Product: PRO Tank Ring

Part Number: TRT.00.787.30000/B

Compatible Motorcycle: Ducati Diavel V4 3G (2022-2024)

Material: Fiberglass reinforced plastic / Aluminum

Color: Black

Total Weight: Approx. 0.2 kg / Approx. 0.4 lb

Mounting System: PRO QUICK-LOCK

Guide System: Fidlock magnetic guide

Important Information

• A tank ring adapter is included in the delivery. This adapter replaces the factory-installed tank filler.
• This PRO tank ring is designed specifically for the stated motorcycle model.
• PRO tank rings are compatible with PRO tank bags only.
• Tank rings from the PRO series cannot be combined with EVO tank bags.
• The patented PRO tank ring is designed to suit the motorcycle's tank filler neck for optimal positioning.
