Wunderlich- Oil Level Sensor Guard For BMW R1300 GS / Adventure Protection-13221-002

Wunderlich- Oil Level Sensor Guard For BMW R1300 GS / Adventure Protection

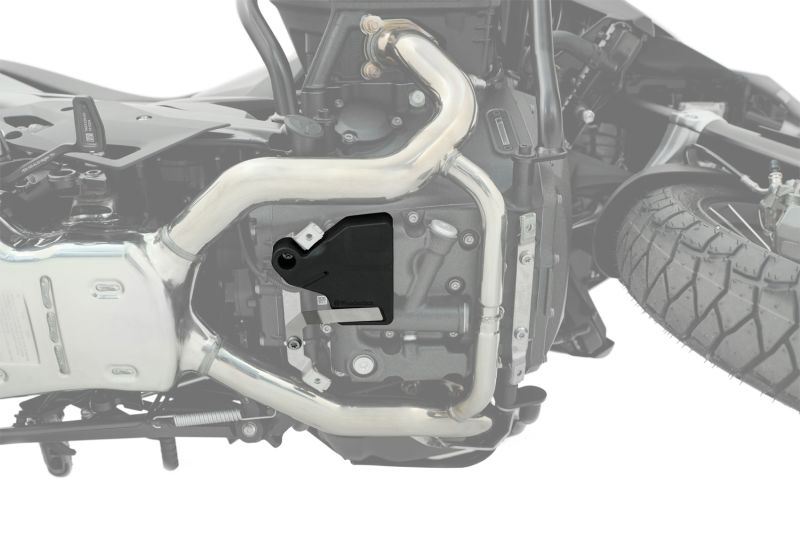

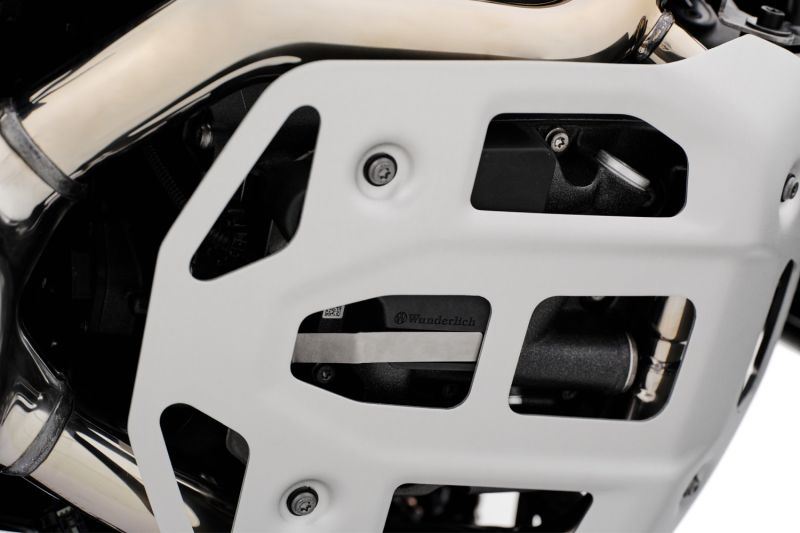

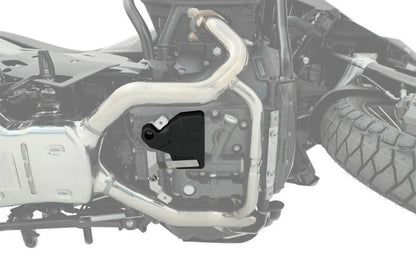

The Wunderlich Oil Level Sensor Guard is an essential protection accessory for BMW R1300 GS and GS Adventure models, particularly during off-road use. The guard is designed to shield the oil level sensor located at the bottom of the engine sump from potential damage caused by impacts or flexing of the engine guard. Made of a composite material combining stainless steel and damping rubber, this guard redirects any forces exerted by the engine guard to the oil sump over a wide surface area, preventing mechanical stress on the sensor.

Function and Product Features :-

• Protection for the Oil Level Sensor :
  The oil level sensor located at the bottom of the oil sump on the BMW R1300 GS and GS Adventure is highly exposed during off-road riding. It is vulnerable to damage from impacts, especially when crossing ramps or bottoming out. The engine guard may flex under stress, potentially exerting pressure on the sensor.
• Prevents Sensor Damage :
  The oil level sensor is made of plastic, which is not designed to withstand significant mechanical force. A damaged sensor can result in oil leaks from the sump, causing potential engine damage and environmental contamination.
• Redirection of Forces :
  The oil level sensor guard addresses this by redirecting the forces from the engine guard to the oil sump. This action is spread over the widest possible area, preventing concentrated pressure on the sensor, ensuring it remains protected.

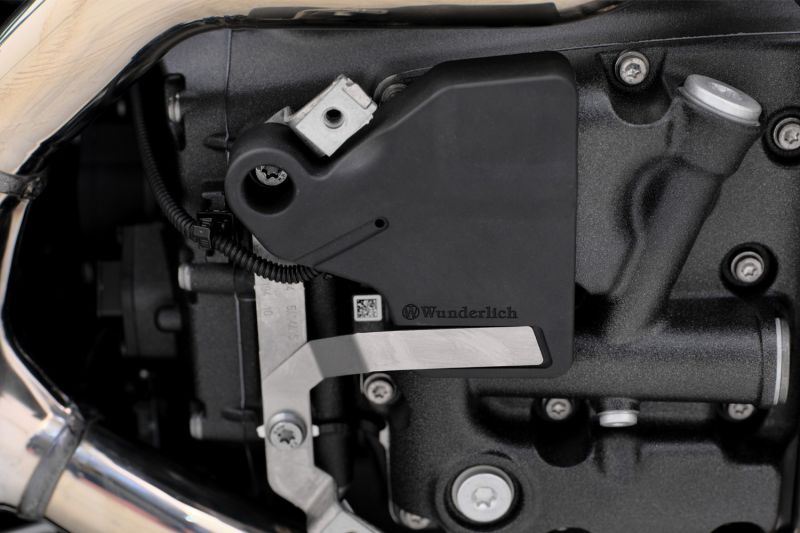

• Protective Chamber for Sensor :
  The guard creates a protective chamber around the sensor, isolating it from mechanical stress, thus safeguarding the sensor and significantly reducing the risk of damage or failure.

Benefits:-

• Prevents Mechanical Damage :
  Protects the oil level sensor from impacts that could cause breakage during off-road riding, preventing unnecessary repairs.
• Reduces Risk of Breakdown :
  By maintaining the integrity of the sensor, the guard reduces the risk of breakdowns due to sensor failure or oil leaks, which can be catastrophic for the engine.
• Protects the Environment :
  Helps prevent oil leakage, reducing the environmental impact of potential spills caused by damaged sensors.

Compatibility:-

• Compatible with both Wunderlich engine guards and BMW OEM engine guards.
• Can be mounted with existing mounting points.

Mounting & Installation :-

• Form-fit Design :
  Uses existing mounting points for a direct bolt-on installation.

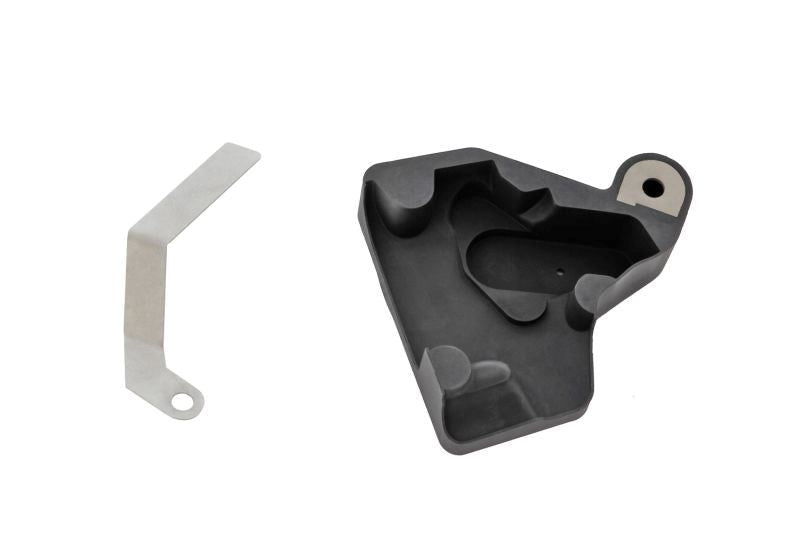

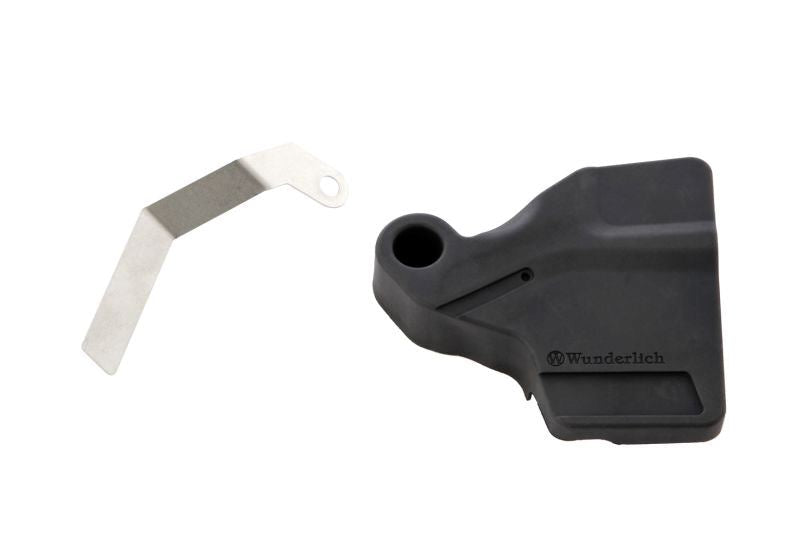

• Spring Steel Bracket :
  The guard attaches with a spring steel bracket for added security and durability.
• Sensor Cable Channel :
  Includes a cable channel that provides a small drainage opening to evacuate splash water or water accumulated during water crossings, preventing any water buildup.
• Easy Installation :
  Comes with all necessary mounting hardware for quick and easy installation, ensuring a hassle-free setup.

Technical Data:-

• Material :
  Composite of stainless steel and damping rubber (EPDM) , vulcanized into a complex shape for heat resistance and durability.
• Colour :
  Black (Matte finish)

Your Wunderlich Advantages:-

• Original Wunderlich Product :
  Designed and produced by Wunderlich, ensuring functional integration with your BMW motorcycle.
• Sustainable Design :
  The product is built to be durable and sustainable, ensuring long-term performance and protection.
• Utility Model Protected Design :
  The design of the oil level sensor guard is protected by a utility model, ensuring that the product provides exclusive functionality and quality.

The oil level sensor is a crucial part of your motorcycle's engine system, and any failure can result in oil leakage, damaging your engine and contributing to environmental pollution. The Wunderlich oil level sensor guard effectively prevents this by creating a secure, protective chamber around the sensor.

This guard is compatible with both Wunderlich and BMW OEM engine guards, and can be installed easily using existing mounting points. The design includes a drainage opening in the cable channel to prevent water build-up after water crossings. The guard is made from high-quality materials and designed to withstand harsh conditions, providing optimal protection for your engine's most vulnerable parts.

Ideal For:-

• BMW R1300 GS (2023 onwards)
• BMW R1300 GSA (2024 onwards)
• Riders are looking for off-road protection to safeguard their engine components from impacts and environmental damage.
