ZANA Universal Mobile Holder with USB Charger - ZI-PH-002

ZANA Universal Mobile Holder with USB Charger - ZI-PH-002

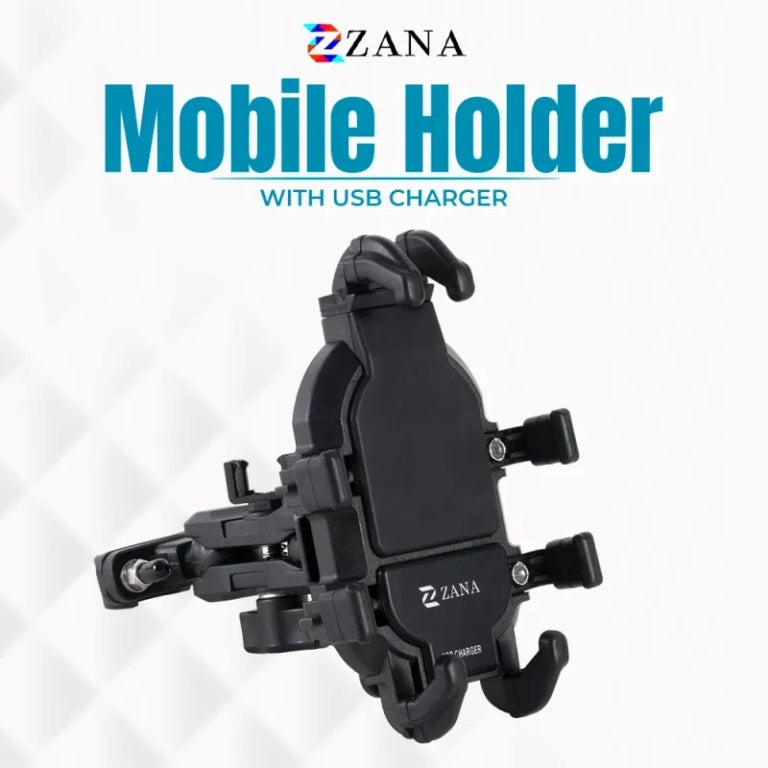

The ZANA Universal Mobile Holder with USB Charger is a practical motorcycle accessory designed to securely hold your smartphone on the handlebar while providing convenient charging capability. The adjustable side supports allow the holder to accommodate different phone dimensions, while the 20 mm ball mounting system provides a secure and adjustable connection to the handlebar clamp.

Features

• Universal motorcycle mobile holder designed for secure smartphone mounting.
• Integrated 18W USB charger for convenient charging while riding.
• Adjustable side supports allow the holder to fit different smartphone dimensions.
• Secure handlebar clamp mounting system.
• 20 mm ball mounting system for attaching the phone holder to the handlebar clamp.
• Secure fastening arrangement helps prevent unwanted free movement of the phone holder body.
• Includes mounting hardware for the handlebar clamp, adjustable side supports, ball socket, and USB charger.

Product Specifications

Product: Universal Mobile Holder with USB Charger

Part Number: ZI-PH-002

Charger: 18W USB Charger

Ball Mount: 20 mm

Mounting: Motorcycle Handlebar Clamp

Brand: ZANA

Installation

Install the Handlebar Clamp

• Position the handlebar clamp at the desired location on the motorcycle's handlebar.
• Use the M6*30 button head bolts to secure the clamp in place.

Attach the Adjustable Side Supports

• Attach the adjustable side supports to the phone holder body.
• Adjust the supports to fit the dimensions of your smartphone.
• Secure the supports using the M4*10 fasteners, 8 in total.

Mount the Ball Socket and 18W Charger

• For the ball socket, use an M5*16 screw and a pair of M5 nylon nuts to attach it to the phone holder body.
• For the 18W charger, use four 9.5 pan Philip STS screws to mount it onto the phone holder body.

Attach the Phone Holder to the Handlebar Clamp

• Insert the ball socket into the 20 mm ball protruding from the handlebar clamp.
• Tighten the nuts securely to ensure a firm fit and prevent free movement of the phone holder body.

Important Information

Before riding, ensure that the handlebar clamp, adjustable side supports, ball socket, and charger mounting screws are properly secured. Adjust the side supports according to your smartphone size to ensure a stable fit.
