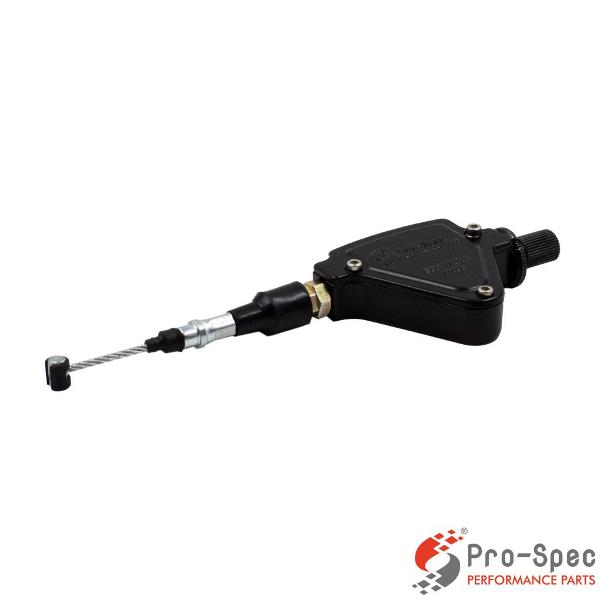

Pro-spec Easy Clutch for Benelli 302 R-EC Pro-EC 260

Pro-spec Easy Clutch for Benelli 302 R-EC Pro-EC 260

For Benelli Select Models

The Pro-Spec Easy Clutch Pro – EC 260 is a performance upgrade engineered to reduce clutch lever effort by up to 40%, providing a smoother and more comfortable riding experience, especially in city traffic conditions. Built from aerospace-grade aluminum, this device is tuned specifically for Indian riding environments while adhering to global manufacturing standards.

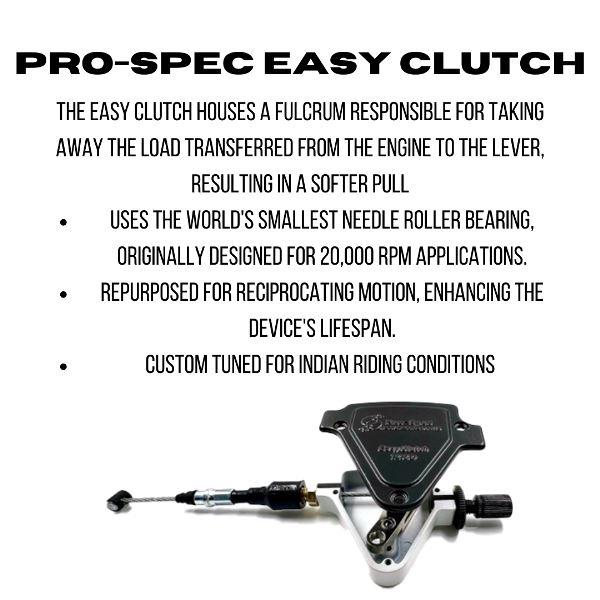

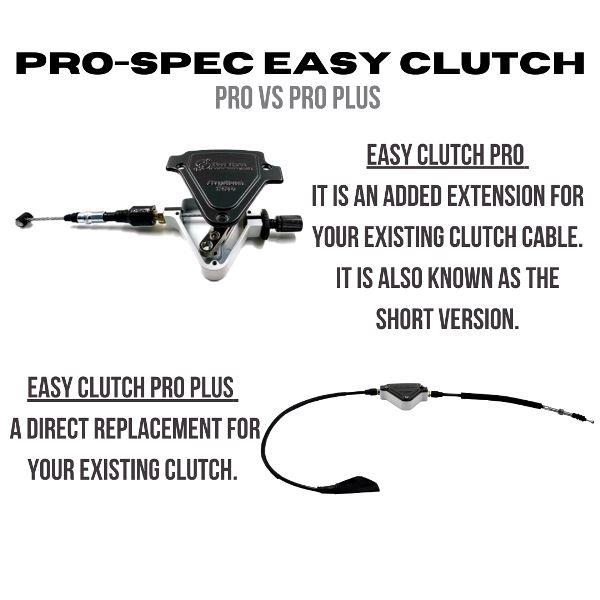

The Easy Clutch Pro is an extension to the OE (Original Equipment) clutch cable and significantly reduces the force required to engage and disengage the clutch. Its robust construction and precision engineering ensure both durability and performance.

---

Key Features

•  Reduces clutch effort by up to 40%
•  Custom-tuned for Indian riding conditions
• Made from aerospace-grade aluminum
• Integrates with OE cable – no permanent modifications
• Improved comfort and reduced hand fatigue in stop-and-go traffic
• 🇮🇳 Designed and manufactured in compliance with global standards

---

What’s in the Box

---

Installation Guide

Follow the instructions carefully to achieve optimal performance and ensure long-term clutch health:

Step 1: Remove the OE Cable

• Detach the OE clutch cable head from the clutch lever (refer to Fig. A).
• Relax the adjuster from the engine yoke and loosen the lock nut (2) if needed to facilitate cable removal (Fig. B).

Step 2: Install Easy Clutch Assembly

• Open the Easy Clutch housing by removing the Allen screws.
• Remove the fulcrum from the housing.
• Insert the OE clutch cable into the adjuster and seat the cable head into the fulcrum ( Fig. C.
• Insert the Pro-Spec short cable into the left side of the housing and secure its head in the fulcrum.
• Attach the other end of the Pro-Spec short cable to the clutch lever, and fit the dust boot over the lever connection.

Step 3: Adjust Clutch Release Point

• Set the clutch release point to approximately 50% of the lever travel.

Adjust as follows:

• If the lease point is below 40%, thread out the adjuster on either side of the Easy Clutch ( Fig. D.
• If the release point is above 60%, thread in the adjuster to achieve correct engagement Fig. E ).

Further fine-tuning can be done at the engine-side cable adjuster:

• Adjustment “ a ” brings the release point closer to the grip.
• Adjustment “ b ” moves it away from the grip ( Fig-F / Fig-G ).

---

Important Notes

• Ensure the clutch lever has minimal free play (not too loose, not too tight):
  • Excessive free play = clutch won’t fully disengage → difficult gear shifts.
  • Insufficient free play = clutch won’t fully engage → clutch slippage and premature wear.
• Lubricate the OE clutch cable with WD-40 or any high-quality cable lubricant before installation.

---

Compatibility

This Easy Clutch Pro – EC 260 model is compatible with the following Benelli motorcycles:

•  502 C
•  TRK 502
•  TRK 502 X
•  Leoncino 500
•  TNT 300
•  TNT 600i
•  302 R
•  TNT 600 GT

❌ Not compatible with Benelli Imperiale 400

---

Disclaimer

The installation and adjustment process must be followed precisely to avoid improper clutch operation. Incorrect installation may result in clutch slipping, difficulty shifting gears, or reduced performance. Always check the clutch play and response after installation. Pro-Spec Performance Parts is not responsible for damage resulting from improper installation or misuse of this product.
